Silicone Coated (Impregnated)
Fiberglass Cloth and Fabric
Fiberglass Cloth and Fabric
Silicone coated fiberglass cloth, is type of fiberglass woven fabric impregnated with a specially formulated silicone rubber, with good properties of flexibility, durability, resistance to oil, water, and general chemicals of acid or alkali.
Silicone impregnated fiberglass fabric, is applicable to removable or reusable insulation blankets or covers, welding curtains, flexible connectors like expansion joints etc..

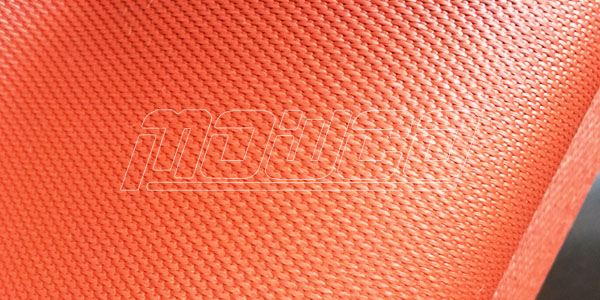

Silicone Coated Fiberglass Cloth - SR3784
| 1 | Style | SR3784 | |
| 2 | Weave | 8 HS Satin | |
| 3 | Yarn (tex) |
Warp Weft |
EC9 136 1×2 EC9 136 1×2 |
| 4 | Width | 101.6 cm 152.4 cm |
|
| 5 | Fabric Thickness | 0.8 mm | |
| 6 | Coating | Two Sides – Silicone Rubber (200 g) | |
| 7 | Coating Thickness | 0.2 mm | |
| 8 | Overall Thickness | 1.0 mm | |
| 9 | Overall Weight | 1080 g/m2 | |
| 10 | Thread Count | Warp Weft |
18 per cm 13 per cm |
| 11 | Tensile Strength Min. | Warp Weft |
8000 N/5cm 6000 N/5cm |
| 12 | Temperature | Max. 260oC | |

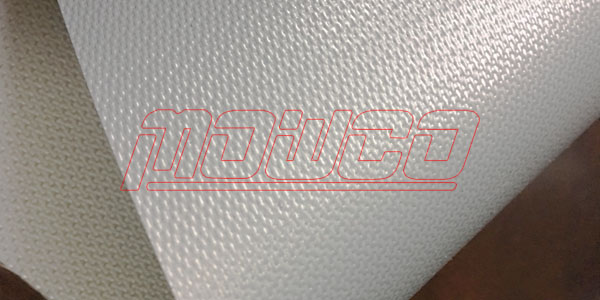

Silicone Coated Fiberglass Cloth - SR3732
| 1 | Style | SR3732 | |
| 2 | Weave | 3x1 Twill | |
| 3 | Yarn (tex) |
Warp Weft |
EC9 68 1x2 EC9 68 1x2 |
| 4 | Width | 101.6 cm 152.4 cm |
|
| 5 | Fabric Thickness | 0.43 mm | |
| 6 | Coating | Two Sides - Silicone Rubber (130 g) | |
| 7 | Coating Thickness | 0.13 mm | |
| 8 | Overall Thickness | 0.56 mm | |
| 9 | Overall Weight | 570 g/m2 | |
| 10 | Thread Count | Warp Weft |
18 per cm 13 per cm |
| 11 | Tensile Strength Min. | Warp Weft |
7000 N/5cm 6000 N/5cm |
| 12 | Temperature | Max. 260oC | |
